加工寬度范圍Machining width range

30-1300mm

最小加工長度Minimum machining length

450mm

加工厚度范圍Machining thickness range

3-80mm

送料速度Feeding speed

（變頻調速）5--25m/mim

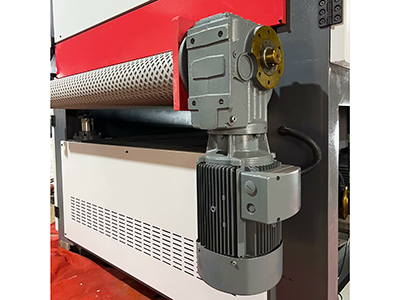

送料電機功率Feeding motor power

4KW

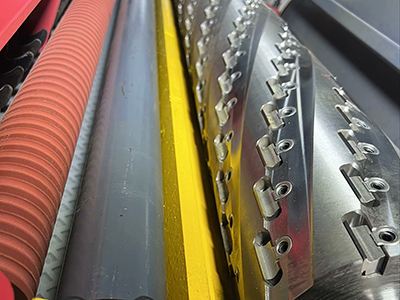

刨刀輥Planer roller

30KW

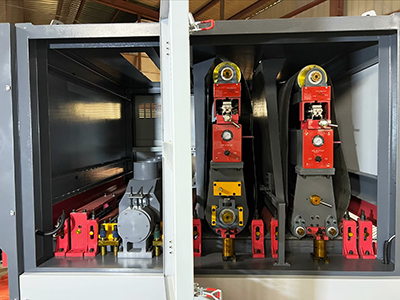

砂輥Sand roller

37KW

拋光輥Polishing roller

22KW

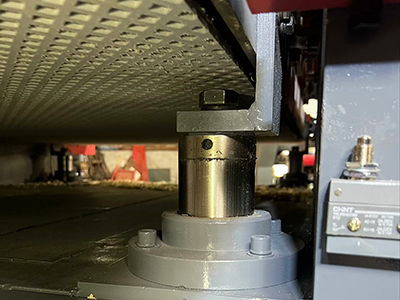

升降電機Lifting motor

0.75 KW

總功率gross power

93.75KW

砂帶尺寸Abrasive belt size

1320*2200mm

工作氣壓working air pressure

0.6MPａ

壓縮空氣消耗量Compressed air consumption

17ｍ3/h

吸塵量Dust collection capacity

15260mａ

高配置High configuration

帶電腦自動定厚儀

外形尺寸(長*寬*高)Overall dimensions (length * width * height)

2600mm*2000mm*2250mm

重量weight

5000KG
